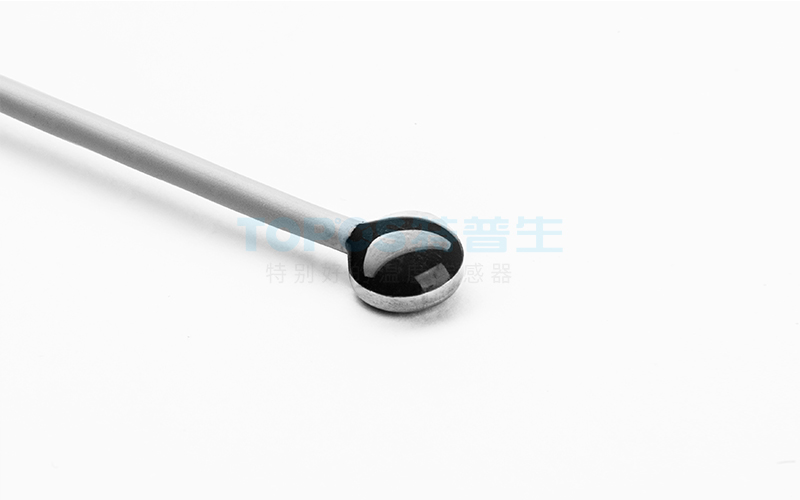

Human skin temperature detection temperature sensor

Material: High temperature resistant scalable anti-corrosion shell, silver-plated wire

Operating temperature range: -30-200℃

Response speed: 3S

Output signal: Analog signal output

advantages

1. The metal disc design conforms to the human body temperature measurement design.
2. Black epoxy resin encapsulated structure inside.
3. All materials comply with medical environmental protection.
4. The accuracy of 37 degrees Celsius can reach plus or minus 0.1 degrees Celsius.

parameter
Resistance value 25 ℃5K10K15K20K50K100K200K
B(R25/R50)3380395034704200397741004200
Accuracy1%2%3%5%

Attention:

What is the value of B: A material constant that describes the relationship between resistance and temperature. The value of B can reflect the degree of resistance to temperature changes between two specific temperatures. With temperature changes, products with a large B value under the same conditions have a greater change in resistance, which means it is more sensitive.

application
