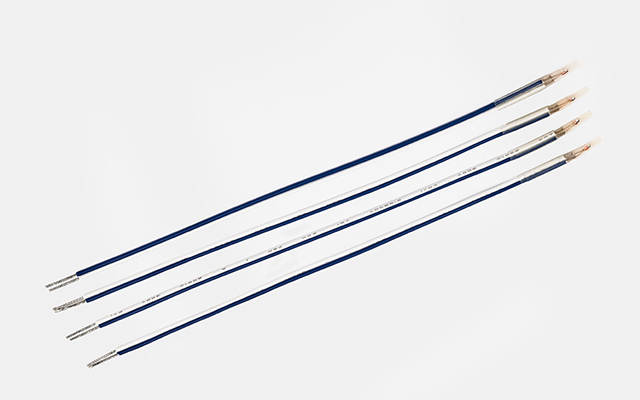

Material: NTC glass sealed thermistor/high-temperature Teflon wire/PVDF heat shrink film
Operating temperature range: -30〜200℃
Response speed: 3S
Output signal: Analog signal output
1. High temperature glass sealed thermistor and high-temperature PVDF film die-casting packaging, with fast response speed, good pressure resistance and waterproof performance
2. Material, length, size, chip, and heat resistance can be customized. No inventory available, samples can also be arranged
3. New energy Charging station temperature sensor, high temperature resistance, fast response speed, high precision and good stability
| Resistance value 25℃ | 5K | 10K | 15K | 20K | 50K | 100K | 200K |
| B value (R25/R50) | 3380 | 3950 | 3470 | 4200 | 3977 | 4100 | 4200 |
| Accuracy | 1% | 2% | 3% | 5% |
Note:
What is the B value: A material constant describing the relationship between resistance and temperature, the value of B can reflect the degree of resistance to temperature changes between two specific temperatures, with temperature changes, under the same conditions A product with a large B value has a greater change in resistance value, that is, it is more sensitive.
New energy Charging station temperature sensor
